Description
Erwin Sattler Troja Sonata M II
The Erwin Sattler Troja Sonata M II is a monumental expression of precision clockmaking, fine furniture making, and discreet luxury storage, brought together in one extraordinary longcase clock. Created for collectors who appreciate both mechanical artistry and architectural presence, it stands as far more than a timekeeper. It is a complete horological centrepiece, built to command a room with elegance, mechanical purpose, and quiet authority.
At the heart of the Troja Sonata M II is the proven Secunda Sonata movement, here presented within a newly refined case that allows its mechanical architecture to be viewed with exceptional clarity. The U-shaped anti-reflective mineral glass door offers an open, uninterrupted view of the movement, while the visible Graham escapement, hand-polished bridgework, and one-metre Invar pendulum bring the slow rhythm of precision timekeeping into the living space. With each measured beat, the clock demonstrates the calm confidence that only a true precision pendulum clock can create.
The silver-plated dial is refined and classical, enriched by a hand-painted moon disc and a cutaway seconds dial. Hand-domed blued steel hands add depth and colour, pairing traditional craft with outstanding legibility. Every surface has been considered, from the warmth of the walnut and metal inlays to the restrained black varnish of the case, creating a sophisticated balance between technical seriousness and interior design presence.
The Sonata designation adds another layer of mechanical charm. A half-hour rack strike train with gong gently marks the passing of time, while a strike train silencer allows the owner to control when the room is filled with sound. The 30-day power reserve gives the Troja Sonata M II an appropriately grand cadence, requiring attention only once a month while maintaining the ritual and romance of a traditional weight-driven clock.

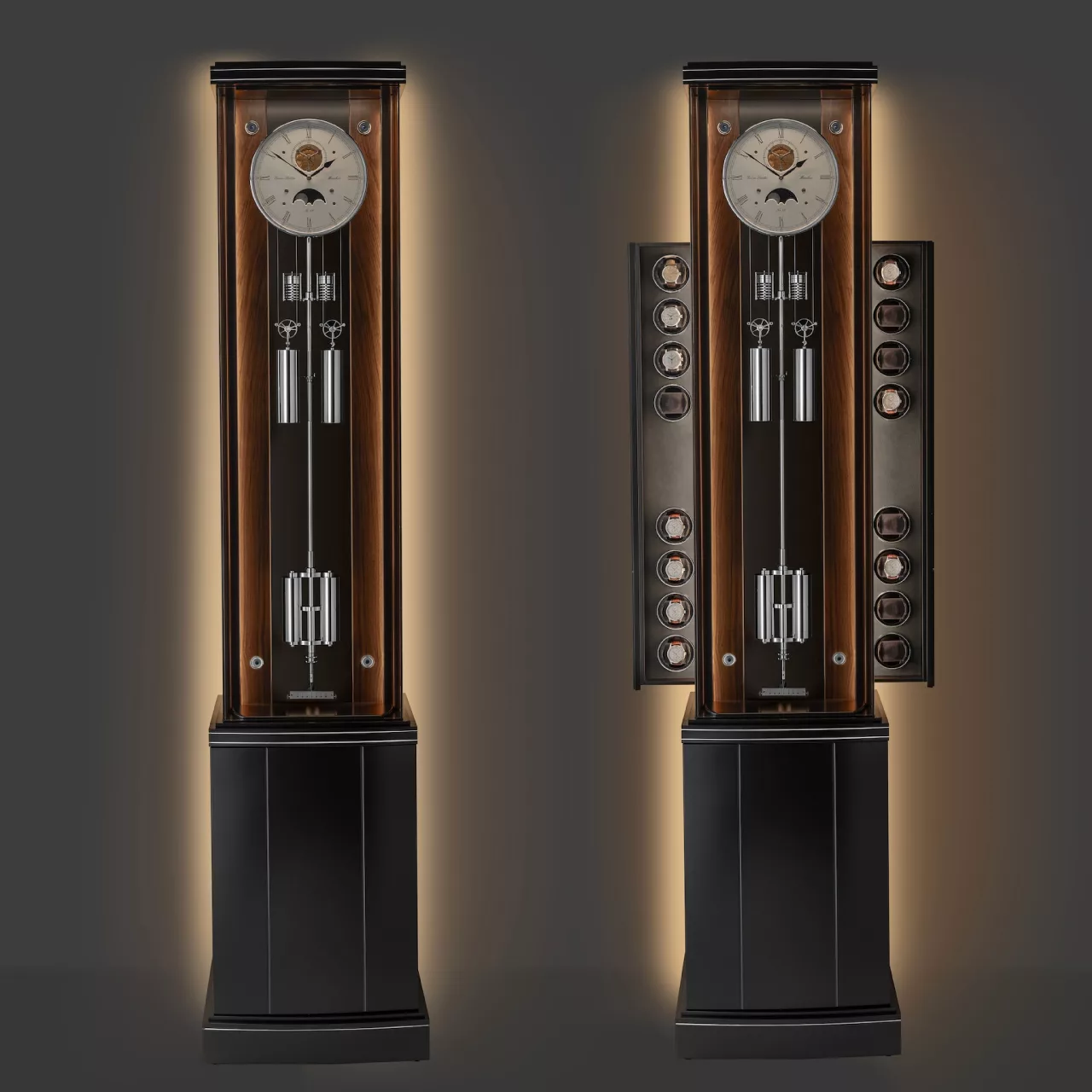

Beyond its visible horology, the Troja Sonata M II also incorporates discreet modern functionality. Sixteen precision watch winders are hidden within the sides of the case, each individually programmable via Wi-Fi and powered by high-performance motors. These winders extend sideways from the clock body and include adjustable holders for various strap lengths, with dedicated lighting that can be separately switched and dimmed by remote control.
The base of the clock contains an integrated safe, adding genuine practical security to its sculptural form. Classified to Euro/VdS Category I, it provides secure storage for valuables and can, on request, be connected to an in-house alarm system. With additional lighting in the safe, behind the clock, and within the case itself, the Troja Sonata M II brings together mechanical timekeeping, collector-grade watch storage, secure protection, and refined interior atmosphere in one remarkable creation.
Technical Specifications
- Model
- Erwin Sattler Troja Sonata M II
- Luxury longcase precision pendulum clock
- Integrated safe and 16 precision watch winders
- Equipped with the movement of the Secunda Sonata
- Case
- Black varnish with walnut and metal inlays
- Also available in black varnish with metal inlays
- Height: 219.5 cm
- Width: 45.5 cm
- Width with watch winders extended: 70 cm
- Depth: 50 cm
- Requires wall mounting at dial height
- Door with magnetic closure
- New case with anti-reflective U-shaped glass
- Lighting inside the clock and indirect lighting behind the clock
- Lighting separately switchable and dimmable via remote control
- Base with integrated safe
- Safe lighting separately switchable and dimmable via remote control

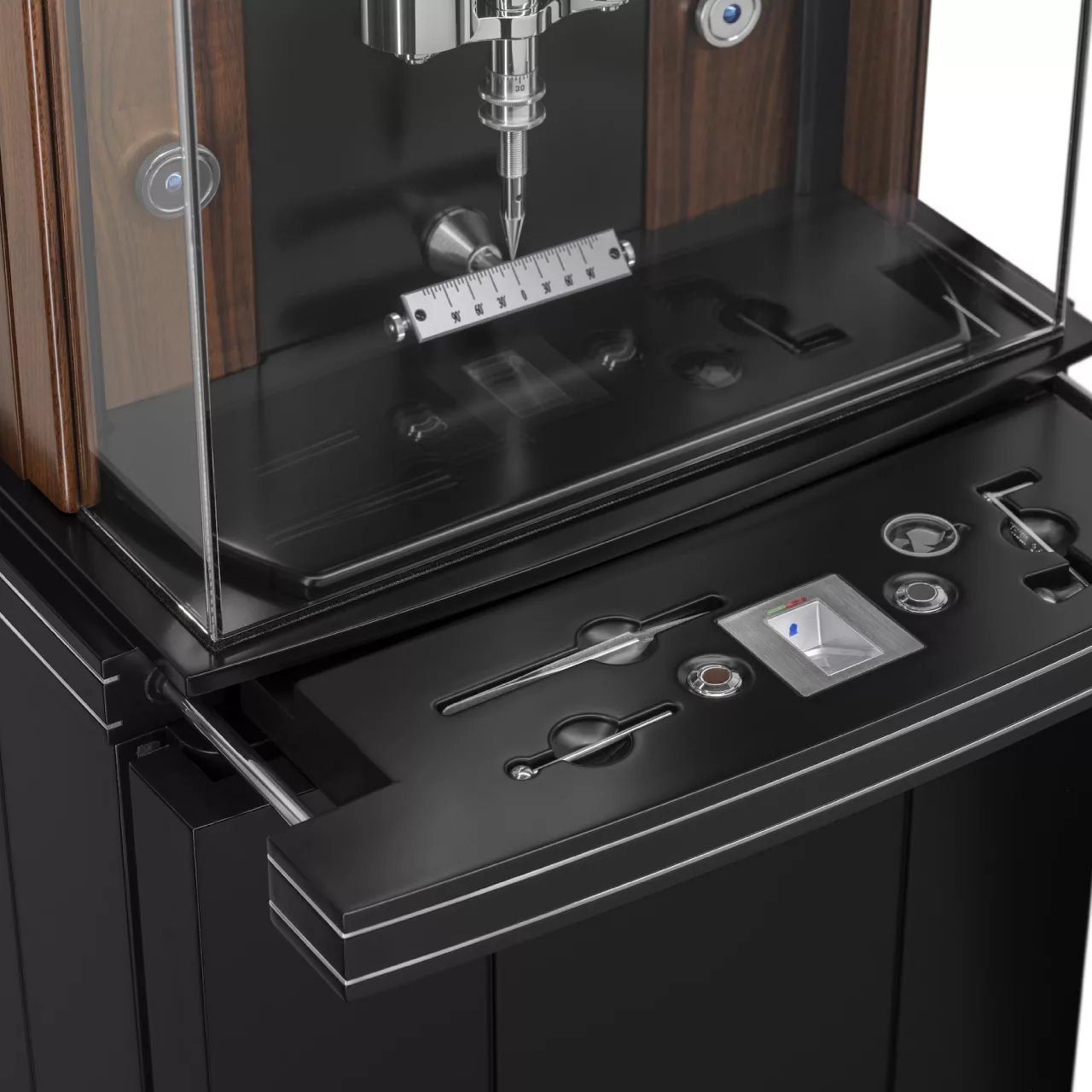

- Drawer with control elements
- Can be connected to an in-house alarm system on request
- Weight
- Crystal
- U-shaped mineral glass door
- Anti-reflective finish
- Movement
- Sattler calibre 2015
- Cutaway in the front plate
- Three-arm escapement wheel bridge
- Escapement wheel bridge domed and polished by hand
- Visible Graham escapement from the front
- Power Reserve
- Drive
- Weight going train: 4,500 g with pulley and ball bearings
- Weight strike train: 5,000 g with pulley and ball bearings
- Oscillator
- Invar pendulum, Ø 12 mm
- Temperature and air-pressure compensation
- Twin barometer
- Bearings
- 20 precision ball bearings
- 4 jewel bearings in chatons
- 2 agate anchor pallets
- Dial
- Silver-plated dial
- Hand-painted moon disc
- Cutaway in seconds dial
- Hands
- Blued steel hands
- Domed by hand
- Strike Train
- Half-hour rack strike train with gong
- Strike train silencer
- Watch Winders
- 16 precision watch winders
- Sideways extendable
- Individually programmable via Wi-Fi
- 16 high-power motors
- 12 o’clock positioning
- Watch holders for various strap lengths
- Integrated lighting, separately switchable and dimmable via remote control
- Beat Rate
- 3,600 per hour
- 60 per minute
- Safe
- Euro/VdS Category I
- Insurance cover for private use up to €65,000.00
- Insurance cover for commercial use up to €20,000.00
- Electronic locking system
- Door hinge: DIN right
- External dimensions: H 610 mm x W 405 mm x D 340 mm
- Internal dimensions: H 504 mm x W 312 mm x D 221 mm
- Doorway: H 504 mm x W 265 mm
- Safe weight: approximately 110 kg
